Computer Display Hydraulic Universal Testing Machine

This product is mainly used for the tensile test of metal materials,testing the tensile strength,yield strength,stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.
PRODUCTS INTRODUCTION

  • This product is mainly used for the tensile test of metal materials,testing the tensile strength,yield strength,stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.

  • Control method of rate testing: manual control

SOFTWARE

Mid-range machine model, with high cost performance and stability


Main Function and Usage


◆This product is mainly used for the tensile test of metal materials, testing  the tensile strength,yield strength,  stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.

◆Control method of rate testing: manual control.

◆The testing results can be automatically stored, and the testing report,including the testing data and testing curve  would be generated and printed automatically.


Main Specifications and Technical Parameter


 ModelWEW-2000DWEW-1000DWEW-600DWEW-600BWEW-300B
Maximum Testing Force2000 kN1000 kN600 kN600 kN300 kN

Class of

Testing Machine

Class 1
Efficient Measure Range10%-100%FS

Relative Accuracy

of Value Display

±1%

Discrimination of

 Testing Force

0.005

Discrimination

 of Displacement

0.001
Tensile Volume（mm）1300700650650650

Compression Volume

（mm）

1000550550550600
Column Space（mm）745550450430430

Round Specimen

Clamping Range（mm）

Φ20-Φ65Φ6-Φ45Φ6-Φ40Φ6-Φ40Φ6-Φ26

Flat Specimen

Clamping Thickness（mm）

0-500-300-300-300-30

Max. Width of

Flat Specimen Clamping

（mm）

14075757575

Pressure Plate

Dimension（mm）

Φ300Φ160Φ160Φ160Φ160

Overall Dimension

（L*W*H）(mm)

1200*800*3300910*830*2300840*700*2200740*590*2150

Oil Source

Console Dimension（mm）

1150*800*1000
Total Motor Power（kW）42221.5
Total Weight（kg）90003200230020001600


PRODUCTS DETAILS





  • The Main Interface





  • There are many standards can be choosen

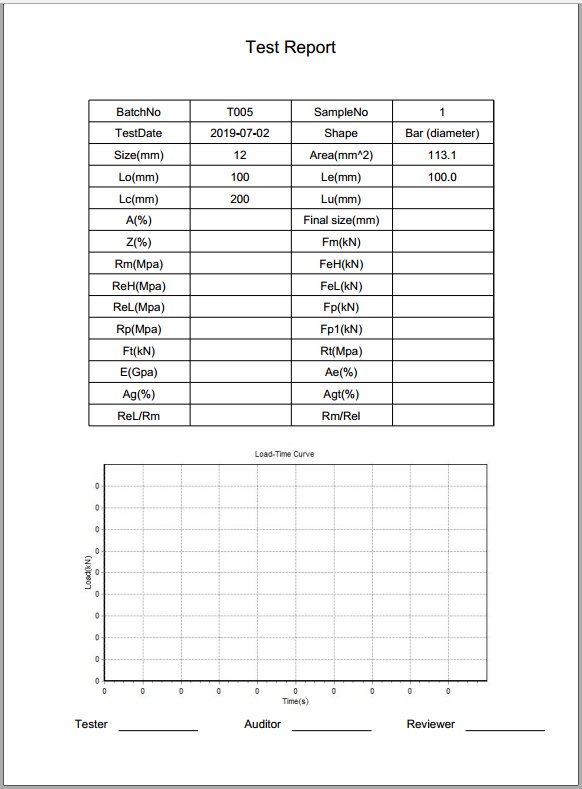

  • The Test Report
