Main Function and Usage
It is suitable for tensile,compression, bending , cutting , stripping, splitting and other testings for metal materials or non-metal materials.

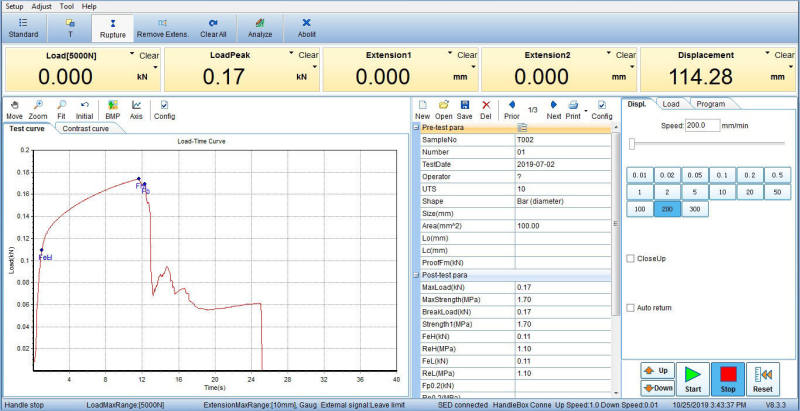

Main Performance Characters
◆Door type frame structure, with double space.
◆It adopts circular tooth profile synchronous belts in the transmission part, ball screw as assistant transmission, conducting a stable transmission.
◆Driven by TECO servo motor, putting the movement of the cross beam from top to bottom, the testing takes it s own process step by step.
Adaptable Standard: GB、ISO、ASTM、DIN
Main Specifications and Technical Parameter
| Model | WDW-10M | WDW-20M | WDW-30M | WDW-50M | WDW-100M | WDW-200M | WDW-300M |
| Max. Testing Force | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN |
Measure Range of Testing Force | 2%-100% of the Max. testing force |
| Accuracy of Testing Machine | Over ±1% than the value display |
Accuracy of Deformation Measure | ±1% |
Measure of Cross-beam Displacement(mm) | Discrimination 0.001 |
Accuracy of Testing Force Value Display | Over ±1% than the value display |
Measure Range of Deformation | 2-100% |
Measure Range of Large Deformation | 10～800（optional） |
Accuracy of Large Deformation | With in ±1% of the value display |
Discrimination of Displacement(mm) | 0.001 |
Adjustment Range of Force Control Speed | 0.001～10% |
Accuracy of Force Control Speed | ≤±1% |
Adjustment Range of Deformation Speed | 0.00025 /S～0.0025 /S |
Control Accuracy of Deformation Rate | ≤±1% |
Adjustment Range of Displacement Rate | 0.01mm/min～500mm/min；(random setting) |
Accuracy of Displacement Rate and Space | ≤±1% |
| Tensile Volume(mm) | 800 | 800 | 800 | 600 | 600 | 600 | 600 |
Width of the Testing Space(mm) | 370 | 370 | 370 | 420 | 470 | 600 | 600 |
| Overall Dimension (mm) | 686 ×525×1880 | 845 ×654×2176 | 1100×770×2558 |
| Clamping Type | Standard Refiguration: wedge tensile,compression, bending optiona l implement,wedge, plate and any other jaw optional implement |
| Weight(kg) | 250 | 250 | 500 | 700 | 1560 | 2000 |
| Motor Power(kW) | 0.75 | 0.75 | 1 | 1.5 | 3 | 5 |
| Type of Machine | Floor type |
