Automatic compression testing machine

It can be used in the compression and bending strength testing of cement mortar.
PRODUCTS INTRODUCTION

  • It can be used in the compression and bending strength testing of cement mortar.

  • Control Method of testing rate: Electro-hydraulic closed-loop control.

SOFTWARE

Main Function and Usage

  • The model YAW-300D can be used in the compression strength testing of cement mortar

  • The model YAW-300E can be used in the compression and bending strength of cement mortar.

  • Control Method of Testing Rate: Electro-hydraulic closed-loop control.


Main Specifications and Technical Parameter


ModelYAW-300DYAW-300E
Test Compression Force300 kN300 kN(compression) /10 kN(bending)
Measure Scale2%-100%FS2%-100%FS
Accuracy ClassClass 1Class 1
Loading Speed2.4kN/S±200N/S2.4kN/S±200N/S(compression)/ 50N/S±5N/S(bending)
Accuracy of Loading Speed ±5%±5%
Pressure Plate Space(mm)260260
Top and Bottom Pressure Plate Dimension (mm)Φ155Φ155(compression)/80×150(bending)
Efficient Stroke of Lead Screw(mm)100100
Column Clear Space(mm)300300
Motor Power(kW)0.750.75
Load Frame Size（L×W×H）(mm)600×560×1500600×560×1500
Weight (kg)400400


PRODUCTS DETAILS




  • The Main interface




  • The test methods can be choosen

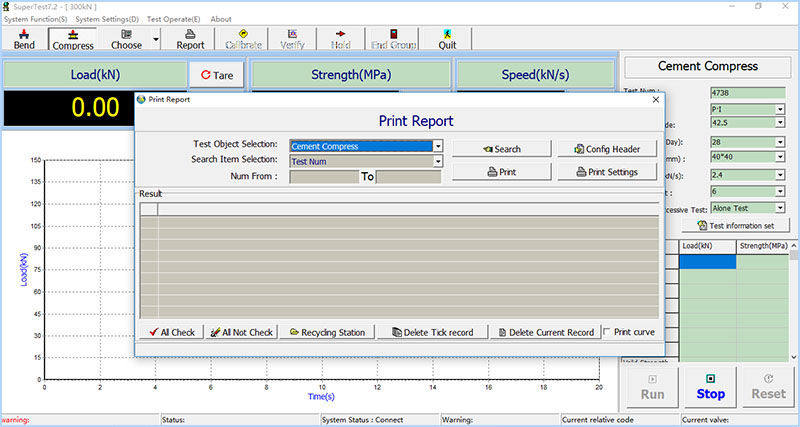

  • The test report
